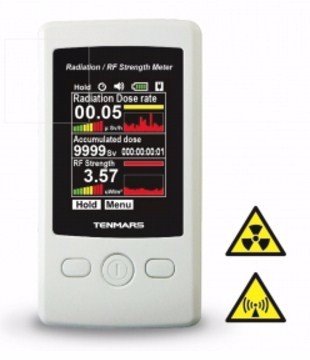

Product Description:

• Gamma radiation dose rate and dose measurement. Alert mode indicator
• Bar Graph display
• Sampling rate: 6 seconds per time
• 2.4(inch) color TFT LCD
• 4 digits, 2.4 inches color TFT LCD
• Language: English, Traditional Chinese, Simplified Chinese, Japanese, Spanish
• Battery life: approx. 10 hours
• Dimensions: 115x60x31mm (LxWxH)
• RF dose rate: histogram
• Audible key tone alarm function
• Data hold
• 5V USB external power supply
• Power: 9V alkaline battery
• Weight: approx. 170 g

Radiation Monitor Specification:

• Sample rate: 1 time /10 seconds or 1 time /40 seconds
• Radiation sensor: Geiger- mueller tube
• Resolution: 0.01µSv/h  0.01µRem/h
• Accuracy: ±15% cesium-137
• Gamma energy range: 10KeV to 1.25MeV
• X-rays energy range: 3KeV to 3.0MeV
• β-beta energy range: 25KeV to 3.5MeV
• CPM: 0~1999
• CPS: 0~212
• Dose logger interval: 1 to 999 days

RF Strength Specification:

• Sample rate: 1 time /10 seconds
• RF sensor: Single axis sensor
• Measurement range: 0.1~14.0 V/m
• Accuracy: ±2dB to 2.45GHz
• Frequency range: 50MHz to 3.5GHz
• Range:
  • 0.02µW/m² to 484.6µW/m²
  • 0.01µW/cm² to 45.3µW/cm²
  • 36.1mV/m to 13.90V/m
  • 0.01mA/m to 30.01 mA/m
  • -46 dBm to 16 dBm
• Resolution:
  • 0.01µW/m²,0.01µW/cm²
  • 0.2 mV/m,0.02 mA/m,2dB
